Router Table Builder Kit, Small Reviews
Other Picture
Router Table Builder Kit, Small Feature
- Deluxe Insert
- T-track set with knobs
- Safety Bit cover
- Benchtop Aluminum Core (24") with Dust Port and Adaptor
- Miter Track

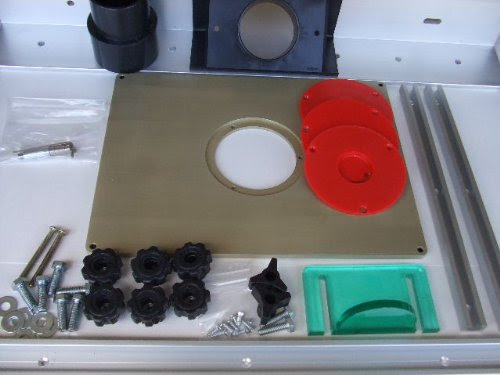

If your thinking about building your own custom router table, this kit will give you all the parts you may need.
It features:
Deluxe Insert
# 12" x 9" x 3/8" thick
# Aluminum (not pictured in group photo, see photos below)
# cnc milled
# two snap out rings 3 7/8", 2 5/8"
# 1 1/4 universal template hole (center)
# starter pin
# several different mounting holes
# will hold any router
T-track set with knobs
# 11 1/2"
# Counter sunk screw holes
# screws included
# So why the two pieces? Well if you order a 24" piece from one of those catalog vendors, you will have to cut the piece in half. When you do that, your insert holes are not going to line up. This track is already cut, and the counter sunk holes are all ready to go for installation.
#
Safety Bit cover
* Heavy duty
* 2 bolts and knobs
* 4 1/4 x 2 1/2
Benchtop Aluminum Core (24") with Dust Port and Adaptor
* 3"x3x24"
* 1/4" thick
* Cutout 4" x 2 1/2" x 2 1/2"
* Dust port is 2 3/4" O.D. 2 1/2" I.D.
* Fence core knobs
Miter Track
# 27" x 1 1/2"
# Accepts standard accessories
Visit Store Now !!
